It’s early morning, and the bridge you cross every day is unusually quiet. As you walk along, you notice something you’ve never paid attention to before—those small gaps between sections of the bridge. They may appear insignificant, but these spaces, known as expansion joints, work hard to keep the bridge stable and undamaged.
Without these joints, bridges would crack and crumble under the stress of changing temperatures, heavy traffic, and natural shifts in the ground. Expansion joints allow bridges to flex, move, and adapt to the environment without causing damage to the structure. They are those who are overlooked that ensure every journey across the bridge remains smooth and secure.
In this blog, we will explore the complex world of expansion joints in bridges. You’ll learn why their installation is crucial, how they protect bridges from damage, and what steps ensure a successful installation.
What Are Expansion Joints and Why Are They Important for Bridge Structures?
Expansion joints are essential elements of bridges that help them to safely expand and contract in response to temperature variations, traffic loads, and environmental conditions. Without them, bridges could break or suffer stress damage. Expansion joints ensure the bridge’s integrity and prevent structural failures, which leads to long-term strength.
Key Benefits of Expansion Joints:
- Temperature Adaptability: They allow the bridge to expand in hot weather and contract in cold weather, preventing cracks.
- Stress Distribution: Expansion joints reduce stress by evenly distributing movement across the structure.
- Preventing Damage: They prevent cracks and other structural issues caused by shifting and movement.
- Traffic Impact Reduction: These joints ensure a smooth ride for vehicles, even when the bridge is moving slightly.
- Extended Lifespan: Properly placed expansion joints increase the bridge’s durability, reducing the need for frequent repairs.
What Are the Types of Expansion Joints?
Expansion joints come in various types, each designed for specific applications and structural requirements. Understanding the different types helps ensure the correct joint is selected for your project.
Compression Seal Joints
Compression seal joints are rubber-based and provide excellent flexibility, making them ideal for bridges. They are easy to install and can accommodate a wide range of movements.
- Key Feature: They offer long-term durability with low maintenance, making them cost-effective.
Strip Seal Joints
Strip seal joints consist of an elastomeric seal held in place by steel edge beams. These joints provide excellent waterproofing and flexibility.
- Key Feature: They are ideal for high-movement areas due to their high expansion capabilities.
Finger Plate Joints

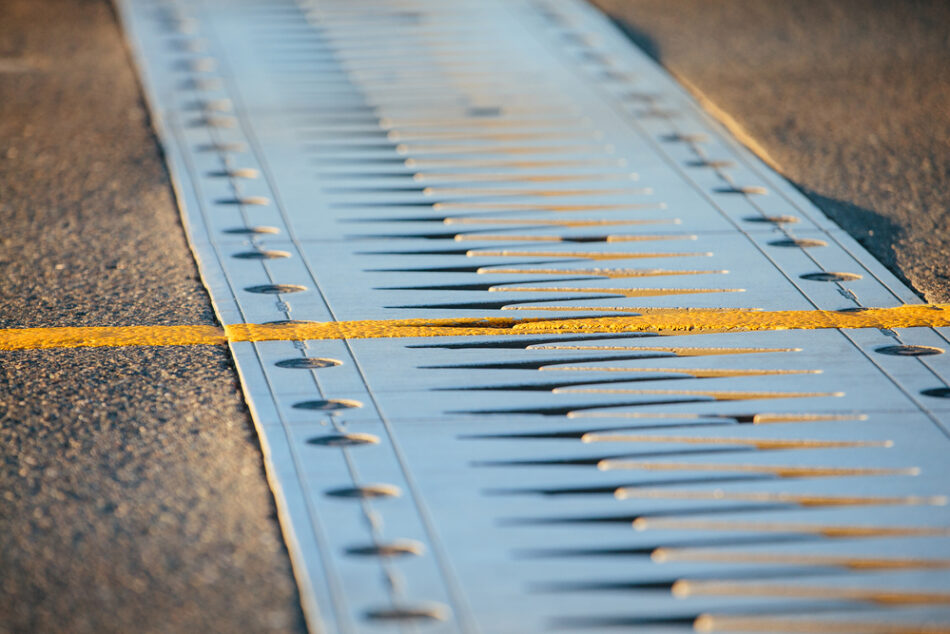

Finger plate joints are designed with interlocking steel plates that allow for extensive movement. They are mainly used in larger bridges where movement is substantial.
- Key Feature: They offer superior flexibility and durability in extreme conditions.
Modular Expansion Joints
Modular joints are complex systems designed for bridges that experience significant expansion. They consist of multiple seals and are often used in multi-lane structures.
- Key Feature: Their multi-seal design offers maximum movement accommodation without sacrificing strength.
Slab Seal Joints
Slab seal joints are flexible and durable, with elastomeric materials offering resistance to heavy traffic loads. They are often used in bridges where load-bearing capacity is essential.
- Key Feature: They combine flexibility with load-bearing capabilities, which makes them suitable for high-traffic bridges.
Why Are Expansion Joints Ideal Compared to Other Materials?
Expansion joints offer several advantages over traditional materials like concrete or steel plates. Their flexible nature allows them to adapt to changes in temperature and movement without causing damage to the structure. Other materials, like rigid steel or concrete, may crack or wear down over time under stress.
- Prevents Injuries: Expansion joints create smooth transitions between bridge sections, reducing the risk of injuries caused by uneven surfaces.
- Reduces Stress on Materials: By absorbing movement, they lower the stress on concrete and steel.
- Increases Safety: Smooth driving surfaces minimize accidents caused by sudden bumps or gaps.
- Minimizes Vibration: Expansion joints reduce vibrations that could weaken structures over time.
- Reduces Repair Costs: Bridges with expansion joints require fewer repairs, leading to long-term cost savings.
What Are the Installation Steps of Expansion Joints in Bridges?
Installing expansion joints in bridges requires precision and adherence to safety guidelines. Here is a detailed step-by-step guide to ensure proper installation.
- Prepare the Surface: Clean the joint area thoroughly to remove debris, dust, or any loose particles that may affect adhesion.
- Measure the Gap: Measure the joint opening to ensure it matches the required dimensions for the expansion joint.
- Install Support Beams: Place the steel or elastomeric support beams that will hold the joint in place, ensuring they are level and aligned.
- Position the Expansion Joint: Carefully position the expansion joint within the gap, ensuring it aligns with the structure’s movement capabilities.
- Secure the Joint: Use bolts or adhesive materials to secure the expansion joint to the bridge surface, ensuring it is tightly fastened and stable.
- Seal the Joint: Apply sealant to prevent water infiltration, which can lead to corrosion or damage.
- Test for Movement: Ensure the joint functions correctly by testing its movement range. Adjust if necessary to accommodate expansion and contraction.
By following these steps, you ensure the proper installation of expansion joints in bridges, contributing to the structure’s safety and longevity.
Expansion Joints Vs. Other Solutions: Which Is Ideal for Bridge Structures?
| Criteria | Expansion Joints | Alternative Solutions (e.g., Flexible Bearings, Sliding Bearings) |
| Functionality | Absorb thermal expansion and contraction | Allow limited movement but don’t fully address thermal changes |
| Durability | High durability under extreme weather | Moderate durability, often needing more frequent maintenance |
| Installation | Requires precise positioning for maximum effectiveness | Easier installation but may require more maintenance in the long run |
| Cost-Effectiveness | Long-term savings with minimal repair needs | Lower initial cost, but higher long-term maintenance costs |
| Ideal Usage | Ideal for large structures with heavy traffic and temperature fluctuations | Suitable for smaller bridges or less extreme conditions |
What Makes Expansion Joints Ideal for Bridge Construction?
Expansion joints are preferred in bridge construction due to their unmatched flexibility and adaptability. These joints can withstand heavy traffic loads, temperature changes, and environmental stress, making them superior to other construction materials like steel or concrete. Here are the key benefits of using expansion joints over other materials in bridge construction:
- Prevented injuries: Expansion joints reduce the risk of accidents caused by uneven surfaces or sudden bumps in the bridge.
- Enhanced durability: Unlike concrete or steel, expansion joints resist wear and tear.
- Better vibration absorption: They minimize the vibrations caused by vehicles, preserving the integrity of the bridge.
- Lower maintenance requirements: Bridges with expansion joints require less frequent repairs, reducing long-term costs.
- Increased safety: Smooth transitions between bridge sections improve driving conditions, ensuring the safety of both vehicles and pedestrians.
Polycrafts: Leading Provider of Bridge Expansion Joints
Polycrafts is a trusted road safety products manufacturer in Pakistan, offering high-quality solutions tailored for various industries. Our expertise extends to the development of durable and reliable expansion joints, essential for ensuring the structural integrity of bridges and other infrastructure. We give high-quality products that meet international standards by prioritizing performance and long-term safety. In addition to expansion joints, we make a variety of safety items aimed at preventing accidents and protecting property. Polycrafts is dedicated to providing practical solutions that improve safety in construction and industrial projects, ensuring you receive the best protection for your structures.
Let’s Recap
Expansion joints are essential components in bridge construction, offering flexibility, durability, and safety. They accommodate movement caused by temperature changes and traffic loads, preventing structural damage and reducing maintenance costs. Whether in bridges or other construction projects, understanding the importance of proper installation and selecting the right type of expansion joint is crucial for long-term success.
In conclusion, expansion joints are not just an addition to bridge structures—they are a necessity for ensuring their safety and longevity. Their ability to adapt to movement makes them the ideal choice for modern construction.
Enhance the safety and longevity of your structures with the flexible power of expansion joints!
