In the world of mechanical engineering and automation, planetary gearboxes play a crucial role in power transmission. Their compact design, high efficiency, and superior torque transmission make them the preferred choice in various industries, from automotive to robotics. But what exactly are planetary gearboxes, and why are they so essential? This guide explores how they work and why they are indispensable in modern machinery.

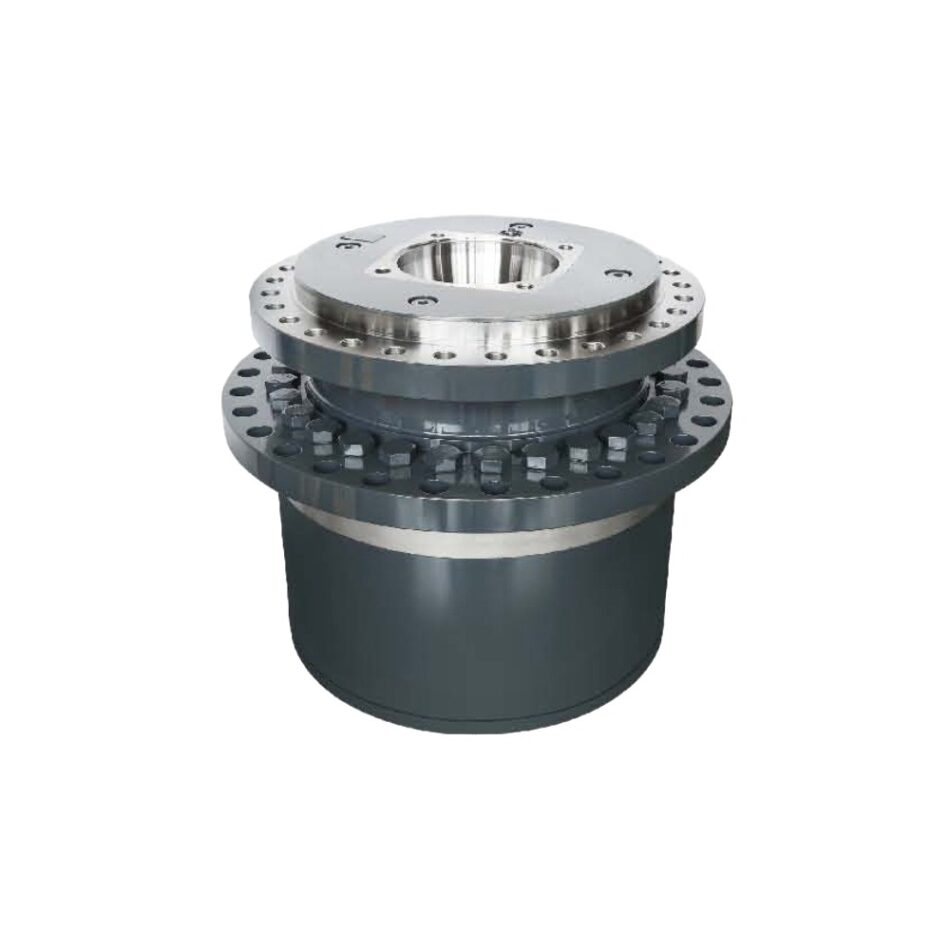

What Is a Planetary Gearbox?
A planetary gearbox, also known as an epicyclic gearbox, is a gear system that consists of three main components:
- Sun Gear: The central gear that provides input power.
- Planet Gears: Multiple gears that rotate around the sun gear.
- Ring Gear: An outer gear that encloses the planetary gears.
The interaction between these components allows planetary gearboxes to deliver high torque and efficiency in a compact space.
How Does a Planetary Gearbox Work?
The working mechanism of a planetary gearbox revolves around its unique gear arrangement. The sun gear is powered by an external force, causing the planet gears to rotate around it. These planet gears are mounted on a carrier and mesh with the outer ring gear, which remains stationary or rotates depending on the application. This setup enables high power transmission while maintaining efficiency and durability.
Key Features of a Planetary Gearbox
- Compact Size: Due to their design, planetary gear systems offer high power output without occupying excessive space.
- High Efficiency: Reduced frictional losses ensure maximum power transmission.
- Superior Torque Density: These gearboxes can handle high torque loads, making them suitable for heavy-duty applications.
- Versatile Applications: Used in various industries, from automotive transmission systems to robotics and aerospace engineering.
Why Are Planetary Gearboxes Important?
Planetary gearboxes are widely used due to their high efficiency, durability, and ability to handle significant loads. Here are some reasons why they are essential:
1. Enhanced Power Transmission
Their design allows for a uniform distribution of load, which minimizes stress on individual gears and enhances power efficiency.
2. Compact and Lightweight Design
Compared to traditional gear systems, planetary gearboxes provide the same or better performance while occupying less space.
3. Increased Durability
The load distribution among multiple gears reduces wear and tear, extending the lifespan of the gearbox.
4. Versatility Across Industries
Planetary gearboxes are widely used in sectors such as:
- Automotive: Found in automatic transmissions and electric vehicle drivetrains.
- Aerospace: Used in aircraft landing gear and satellite positioning systems.
- Robotics: Essential in robotic arms and automation equipment.
- Industrial Machinery: Used in conveyor systems and power tools.
Applications of Planetary Gearboxes
The versatility of planetary gearboxes allows them to be utilized in numerous applications, including:
- Electric Vehicles (EVs): They help optimize power transmission and improve efficiency in EV motors.
- Wind Turbines: Used to adjust rotor speed for optimal power generation.
- Medical Equipment: Found in precision devices such as MRI machines and surgical robots.
- Heavy Machinery: Integral to construction equipment like excavators and cranes.
Choosing the Right Planetary Gearbox
When selecting a planetary gearbox, consider the following factors:
- Torque Requirements: Choose a gearbox that can handle the required load without excessive wear.
- Speed Ratio: Ensure the gear ratio suits the application.
- Material and Build Quality: Look for high-quality materials like hardened steel or composite metals for durability.
- Efficiency: Opt for a gearbox with minimal energy loss.
- Noise Levels: Some applications require low-noise gearboxes, especially in medical or laboratory settings.
Conclusion
Planetary gearboxes are a game-changer in mechanical and industrial applications. Their compact design, high efficiency, and ability to handle heavy loads make them a preferred choice across multiple industries. Whether you’re working with automotive transmissions, robotics, or heavy machinery, understanding the functionality and advantages of planetary gear systems can help optimize your mechanical processes.
