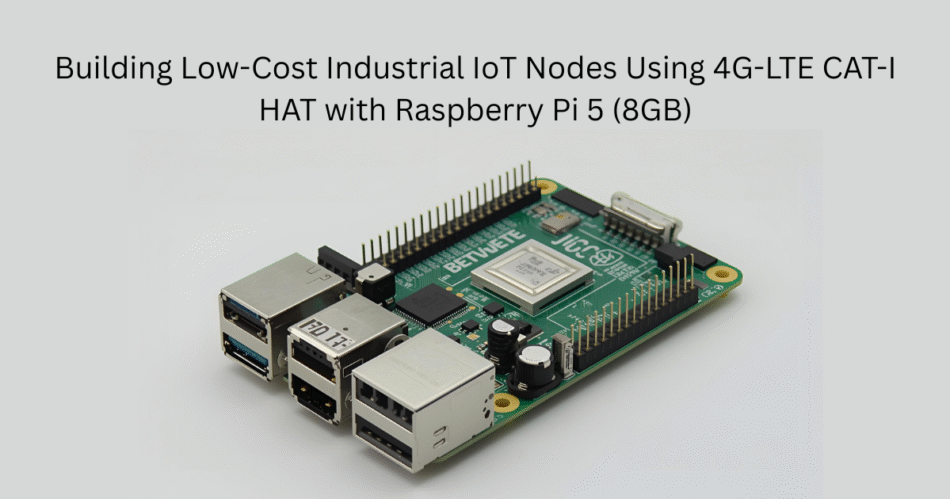

Building Low-Cost Industrial IoT Nodes Using 4G-LTE CAT-I HAT with Raspberry Pi 5 (8GB)

As industrial automation continues to expand, the need for cost-effective, reliable, and low-power IoT nodes has become more critical than ever. Modern factories, utility networks, logistics systems, and remote monitoring applications all depend on robust connectivity—even in locations where traditional Wi-Fi or wired networks are unavailable.

In this context, the combination of a 4G-LTE CAT-I HAT with the Raspberry Pi 5 (8GB) has emerged as a powerful, affordable, and scalable solution for industrial IoT deployments. This article explores how businesses can build low-cost industrial IoT nodes using these technologies while ensuring performance, reliability, and long-term scalability.

1. Why LTE CAT-I for Industrial IoT Applications

1.1 Optimized for Low-Power and Low-Bandwidth Use Cases

• LTE CAT-I is engineered for applications where data transfer happens in short bursts rather than heavy, continuous streams.

• It supports typical upload speeds of 5–10 Mbps, which is more than enough for sending sensor values, logs, alerts, and small control packets.

• Lower bandwidth consumption directly reduces operational costs, especially for deployments with dozens or hundreds of nodes.

• CAT-I modules consume significantly less power than CAT-4 modules, helping battery-powered or solar-powered IoT systems run longer without maintenance.

• This makes it ideal for remote installations where frequent servicing is difficult or too expensive.

1.2 Wide Network Coverage

• CAT-I operates on standard LTE bands used by telecom networks globally, offering reliable connectivity in urban and rural regions.

• Industrial IoT nodes placed in harsh or remote locations receive stronger and more stable network signals compared to niche technologies like NB-IoT or LoRaWAN.

• This ensures uninterrupted operation for systems such as utility meters, agricultural sensors, and environmental stations.

• Since CAT-I uses existing LTE infrastructure, deployment is fast and requires no additional gateways or repeaters.

1.3 Lower Costs with High Reliability

• CAT-I modems and hardware components carry lower price tags than higher-tier LTE technologies.

• Data plans for CAT-I are usually cheaper because bandwidth usage is minimal.

• This combination of affordability and reliability makes CAT-I perfect for mass industrial deployments where hundreds of IoT nodes need to stay connected 24/7.

2. Raspberry Pi 5 (8GB): The Ideal Edge Computing Platform

2.1 Next-Level Processing Power

• Raspberry Pi 5 runs on a 2.4 GHz quad-core ARM Cortex-A76 CPU, offering significant performance improvements over previous Pi generations.

• The CPU supports faster mathematical operations, real-time data processing, and complex sensor analytics.

• It enables the Pi to execute multiple services such as data acquisition, communication stacks, and control logic simultaneously.

• Industrial IoT nodes can perform on-device filtering and anomaly detection instead of sending raw data to the cloud.

2.2 8GB RAM for Edge Intelligence

• The 8GB LPDDR4X RAM gives the Pi enough headroom to run memory-heavy workloads like databases, dashboards, and Docker containers.

• It allows IoT nodes to perform real-time inference using lightweight machine-learning models.

• More memory ensures stable operation even when handling large bursts of sensor data or processing-intensive tasks.

• Developers can run multiple programming environments without performance drops.

2.3 Enhanced I/O Capabilities

• Raspberry Pi 5 supports essential industrial interfaces like GPIO, I2C, UART, and SPI, enabling direct connection to industrial sensors and actuators.

• PCIe 2.0 support allows adding high-speed storage, networking, or specialized industrial peripherals.

• It includes dual 4K display support, which is useful for on-site industrial monitoring panels or HMIs.

• These features make the Pi versatile enough to replace expensive industrial controllers in certain applications.

3. 4G-LTE CAT-I HAT: The Connectivity Backbone

3.1 Industrial-Grade Performance

• CAT-I HATs are designed to deliver stable connectivity even in environments filled with electrical noise or physical interference.

• The modules maintain consistent data sessions for critical telemetry applications such as machine monitoring or safety alerts.

• Their rugged design helps them operate efficiently in high-temperature, dusty, or vibration-heavy industrial settings.

3.2 Features That Enhance IoT Deployments

• CAT-I modules typically connect to the Raspberry Pi via UART or USB, making integration straightforward.

• The HAT includes a nano-SIM slot that supports global telecom bands.

• Most CAT-I HATs offer GNSS for GPS-based asset tracking, if required.

• The U.FL antenna connectors allow attaching high-gain external antennas for stable LTE reception.

• Power-efficient sleep modes help conserve energy during idle periods.

3.3 Remote Device Management

• Once connected via LTE, the IoT node can be accessed remotely through SSH for diagnostics and updates.

• VPN support enables secure connections to private networks without exposing devices to public internet risks.

• Cloud-based management platforms can monitor device health, network usage, and sensor data in real time.

4. How to Build a Low-Cost Industrial IoT Node

4.1 Required Components

• Raspberry Pi 5 (8GB) serves as the central controller and processing unit.

• The 4G-LTE CAT-I HAT provides cellular connectivity necessary for remote locations.

• An industrial-grade power supply ensures stable operation and protects the Pi from voltage fluctuations.

• Optional industrial enclosures provide environmental protection and support DIN-rail mounting.

• Sensors such as temperature probes, vibration sensors, gas detectors, or pressure transmitters collect application-specific data.

4.2 System Integration Steps

Step 1: Hardware Setup

• Mount the CAT-I HAT onto the Raspberry Pi either using GPIO pins or by connecting through USB.

• Insert a nano-SIM containing an active data plan.

• Attach the LTE antenna to ensure uninterrupted network reception.

• Place the assembled hardware inside a rugged enclosure to protect it from dust, heat, and moisture.

Step 2: OS Configuration

• Install Raspberry Pi OS or a Linux-based distribution optimized for IoT workloads.

• Enable the UART interface or USB modem drivers, depending on the HAT’s connection method.

• Configure APN (Access Point Name) settings so the modem connects successfully to the telecom network.

Step 3: Sensor Integration

• Connect sensors using GPIO pins for simple digital inputs like switches or relays.

• Use I2C or SPI for high-accuracy environmental or motion sensors.

• RS-485 adapters allow the Pi to communicate with industrial devices that use MODBUS protocol.

• After wiring, install required libraries and drivers to read sensor data.

Step 4: Data Processing & Application Development

• Write scripts in Python, Node.js, or C++ to continuously read sensor data.

• Apply filtering techniques to remove noise and validate readings.

• Format processed data into JSON or MQTT payloads for transmission.

• Use cloud APIs or MQTT brokers to send data to dashboards, servers, or alert systems.

Step 5: OTA & Device Monitoring

• Implement secure methods for remotely updating firmware and application code.

• Monitor device performance including CPU temperature, network quality, and storage usage.

• Use cloud dashboards to visualize data and manage multiple IoT nodes from a central interface.

5. Key Advantages of This Low-Cost IoT Architecture

5.1 Cost-Effective Deployment

• Raspberry Pi hardware is significantly cheaper than industrial PLCs or dedicated IoT gateways.

• CAT-I modules have lower hardware and operational costs, making them ideal for large-scale rollouts.

• The overall bill of materials remains affordable even when deploying hundreds of units.

5.2 Scalable for Large IoT Networks

• CAT-I supports many simultaneous device connections, making it suitable for massive IoT networks.

• Each node can operate independently without relying on site-level infrastructure such as Wi-Fi access points.

5.3 Reliable for Harsh Environments

• With rugged enclosures and stable LTE, the system continues operating even in dusty factories, outdoor environments, or remote agricultural sites.

• It handles fluctuations in network quality gracefully with built-in reconnect mechanisms.

5.4 Future-Ready with Edge Intelligence

• Raspberry Pi 5 allows running ML models locally to detect anomalies or trends.

• Local processing reduces data usage, lowers cloud costs, and improves response times.

6. Popular Industrial Use Cases

6.1 Smart Metering

• Utility companies can install these nodes on electricity, water, or gas meters to transmit consumption data securely.

• This eliminates manual reading and reduces operational delays.

• Cloud dashboards can monitor thousands of deployed meters at once.

6.2 Predictive Maintenance

• Sensors can monitor machine vibration, temperature, and energy consumption.

• Models running on the Pi detect unusual behavior indicating wear or failure.

• Businesses can reduce downtime and repair costs.

6.3 Factory Automation

• IoT nodes collect data from industrial machines and sensors to ensure smooth production.

• The LTE connection ensures uninterrupted communication even if local networks fail.

• Remote engineers can access nodes for troubleshooting or updates.

6.4 Smart Agriculture

• Soil moisture, irrigation control, and climate monitoring sensors feed data to the Pi.

• LTE CAT-I ensures reliable connectivity even in remote farmlands.

• Automated triggers adjust irrigation or ventilation based on sensor readings.

6.5 Remote Asset Tracking

• Assets like transformers, storage tanks, or construction equipment can be monitored with GNSS-enabled CAT-I HATs.

• The Pi processes location data and sends periodic updates to cloud servers.

7. Future Scope

• More powerful edge AI accelerators can be added to Raspberry Pi 5 in the future for advanced analytics.

• Hybrid nodes combining LTE, Ethernet, and LPWAN can offer multi-layer connectivity for critical applications.

• Advanced encryption and security modules will protect IoT nodes from evolving cyber threats.

• Future CAT-I modules will be even more power-efficient, enabling ultra-long deployments in remote areas.

Conclusion

Building low-cost industrial IoT nodes using the 4G-LTE CAT-I HAT with Raspberry Pi 5 (8GB) is not only practical but also highly scalable. It provides industries with a powerful, energy-efficient, and economical solution to deploy intelligent edge devices across factories, utilities, agriculture, and remote field installations.

With the right hardware, software stack, and connectivity approach, businesses can create reliable IoT nodes capable of running advanced analytics, ensuring connectivity even in harsh environments, and scaling seamlessly as demands grow.
