Vibratory hammer pile driving is a cornerstone technique in the modern construction industry, widely used for installing piles efficiently with minimal environmental disturbance. As infrastructure projects become more demanding in terms of time, cost, and environmental responsibility, vibratory hammer pile driving has emerged as a preferred solution for various foundation works, particularly where speed, precision, and lower noise levels are priorities.
This article explores how vibratory hammer pile driving works, delves into the technology behind it, and explains its practical applications in civil engineering and construction.
What Is Vibratory Hammer Pile Driving?
Vibratory hammer pile driving is a trenchless foundation technique that uses high-frequency vibrations to drive or extract piles (steel, concrete, or timber) into or out of the ground. Unlike traditional impact pile driving, which relies on repeated striking to drive a pile into the earth, the vibratory method applies continuous vertical vibrations that reduce soil resistance around the pile. This allows the pile to penetrate the ground more smoothly and quickly with significantly less noise and structural impact.

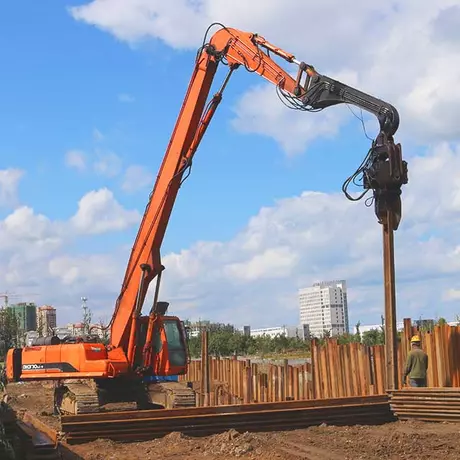

A vibratory hammer, typically mounted on a crane or excavator, is attached to the pile and generates vertical oscillations. These vibrations temporarily reduce the friction between the pile and the soil, enabling gravity and the hammer’s force to insert the pile.
Core Components of a Vibratory Hammer Pile Driving System
A vibratory hammer pile driving setup typically consists of the following components:
- Vibratory Hammer Unit: The heart of the system, containing rotating eccentric weights that generate high-frequency vertical vibrations.
- Clamp: Mechanically holds the pile tightly while transmitting vibrations from the hammer.
- Power Pack: Usually hydraulic, this unit powers the vibratory hammer.
- Control System: Allows the operator to manage vibration frequency, amplitude, and duration.
- Carrier Equipment: Such as a crane or excavator, to position and support the hammer and pile during driving.
Each component plays a vital role in ensuring the efficiency and precision of the vibratory hammer pile driving process.
How the Technology Works
The basic working principle behind vibratory hammer pile driving involves vibration-induced soil liquefaction. When high-frequency vibrations are applied to the pile, they temporarily rearrange soil particles around the pile shaft. This action reduces inter-particle friction, effectively turning the soil into a semi-fluid state, allowing the pile to slide downward more easily.
Key steps in the process include:
- Positioning the Pile: The pile is aligned vertically using guide systems and placed at the desired starting point.
- Clamping: The vibratory hammer clamps securely to the top of the pile.
- Vibration Activation: Once activated, the hammer applies vertical vibrations through the pile.
- Driving the Pile: Under the combined effect of the vibrations and the hammer’s weight, the pile penetrates the soil.
- Stopping at Depth: Driving stops when the pile reaches the required depth or soil resistance becomes too high.
This process is significantly quieter and often faster than impact methods, making it suitable for urban or environmentally sensitive areas.
Applications of Vibratory Hammer Pile Driving
Vibratory hammer pile driving is used across a wide range of civil engineering and construction applications, including:
1. Marine and Offshore Construction
One of the most common uses of vibratory hammer pile driving is in marine projects. It is ideal for installing sheet piles, pipe piles, and H-piles in ports, docks, jetties, and offshore platforms where noise and water disruption must be minimized.
2. Temporary Structures
When temporary sheet piles or cofferdams are needed—such as for excavation support or dewatering—vibratory hammer pile driving allows for fast installation and equally easy extraction without damaging the piles.
3. Urban Infrastructure Projects
Due to its lower noise and vibration levels, vibratory hammer pile driving is often used in congested cities for retaining walls, bridge abutments, and flood control systems. This reduces complaints and risk to surrounding buildings and infrastructure.
4. Foundation Installation for Buildings
In suitable soil conditions, vibratory pile driving offers a quick and cost-effective solution for foundational support in residential and commercial construction.
Advantages of Vibratory Hammer Pile Driving
- Speed: Vibratory hammer pile driving is generally faster than impact methods, reducing construction timelines.
- Low Noise Levels: The lack of repetitive hammering makes this technique more neighborhood- and wildlife-friendly.
- Minimized Ground Disturbance: Lower shock and vibration help prevent soil displacement and structural damage to nearby buildings.
- Ease of Removal: Piles can be extracted with the same equipment, ideal for temporary works.
- Energy Efficiency: Requires less fuel and energy compared to traditional pile driving.
Limitations and Considerations
Despite its advantages, vibratory hammer pile driving has some limitations:
- Soil Type Dependence: Works best in granular soils like sands and gravels. It is less effective in cohesive clays or rock.
- Depth Limitations: Typically used for shallow to moderate depth piles.
- Not Suitable for All Pile Types: May not be ideal for displacement piles or extremely heavy-duty foundations where higher bearing capacities are required.
Proper soil investigation and engineering design are essential before selecting this method for a project.
The Future of Vibratory Hammer Pile Driving
As construction shifts further toward sustainability and automation, vibratory hammer pile driving technology continues to evolve. Recent innovations include:
- Remote and robotic operation
- Energy-efficient hydraulic systems
- Advanced monitoring tools for real-time data on vibration and soil behavior
With increasing emphasis on minimizing construction’s environmental impact, vibratory hammer pile driving is set to play an even more prominent role in the years ahead.
Conclusion
Vibratory hammer pile driving has revolutionized how piles are installed in modern construction. With its efficient, quieter, and environmentally friendly operation, it has become the preferred choice in many infrastructure and foundation projects. Understanding the technology behind vibratory hammer pile driving and its diverse applications allows engineers and contractors to make better decisions aligned with both performance and sustainability goals.
